Pre-coated panel / BAL 29

Masterwall M-Series –

a weathertight, energy efficient,

insulated wall cladding system

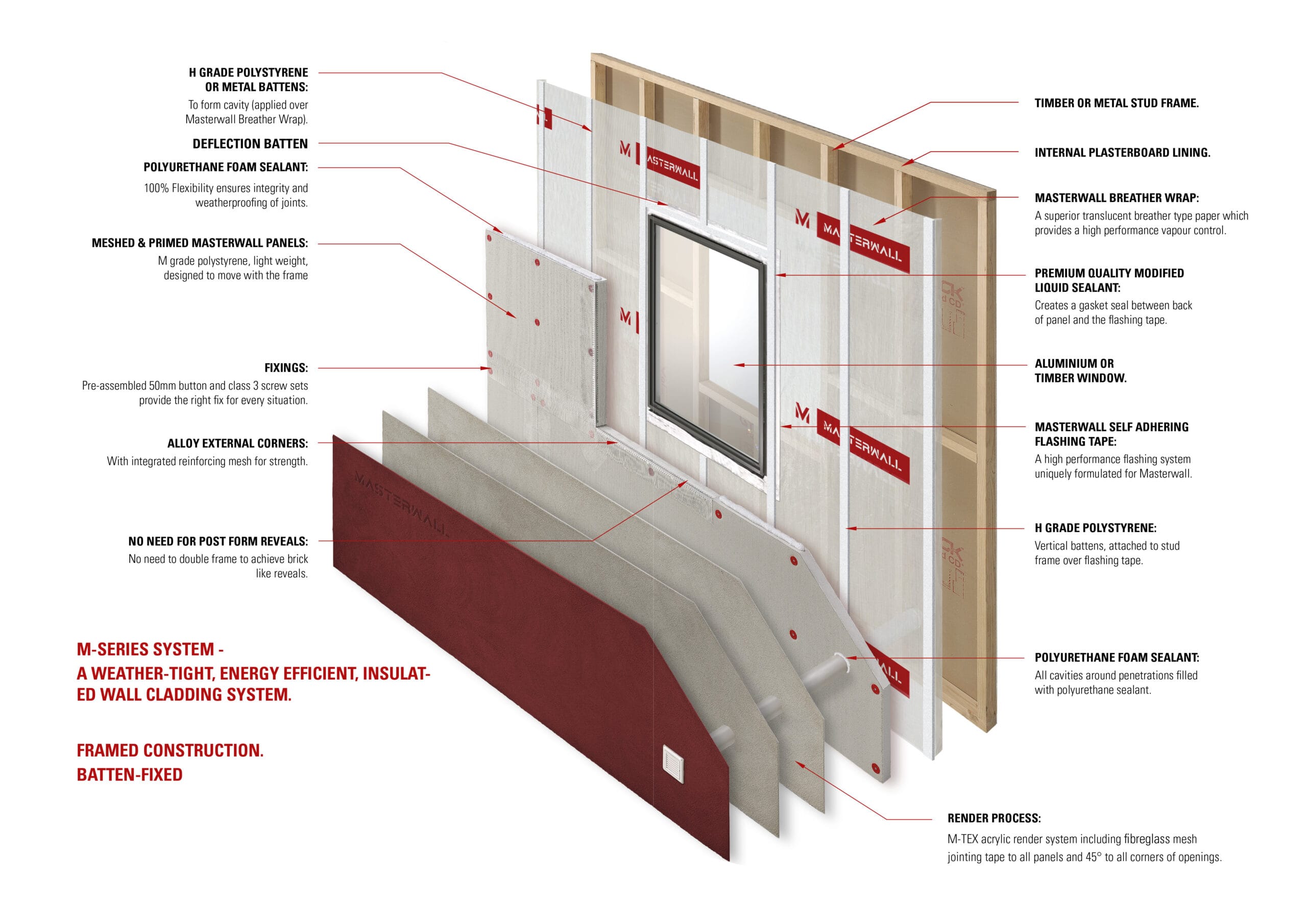

M-Series is an external lightweight, reinforced, insulating polystyrene wall panel, mechanically fixed to the outer face of the building whether that be timber or steel framing or a masonry substrate. The complete system includes the application of approved acrylic render systems, frame wraps, trims, sealants and opening flashings at openings that combine to create a weather-tight building envelope.

Masterwall’s pre-coated panels were the first of its kind in Australia and the design, engineering and construction details are still regarded as the leading system amongst architects, designers and builders.

• Pre-coated Panels
• Codemark accredited
• Fully engineered
• M Grade polysturene
• Up to BAL 29 protection from bushfires
• Integrated air, moisture and drainage control

Sizes & Thicknesses

Standard Panel Size: 2400mm x 1200mm
Nominal Thickness: 50mm. 75mm, 100mm, 125mm
Area: 2.88m2

Thermal Performance

Panel Thickness Material R-value Total R-value (Winter) Total R-value (Summer) Total R-value (Winter) Total R-value (Summer)
Timber Framing Steel Framing
50mm 1.3 1.8 1.7 1.8 1.7
75mm 2.0 2.5 2.4 2.4 2.3
100mm 2.6 3.2 3.0 3.1 3.0
125mm 3.3 3.9 3.7 3.8 3.6

All thermal calculations are compliant with Australian Standard AS/NZS 4859.1:2018 (published 19/11/2018) which now include the allowance of thermal bridging of the timber/steel frame.
